MAXTECH x JG Automotive: Precision Door Hinge Bases for Durable, Smooth Vehicle Access

Engineering Excellence for Critical Exterior Structural Components

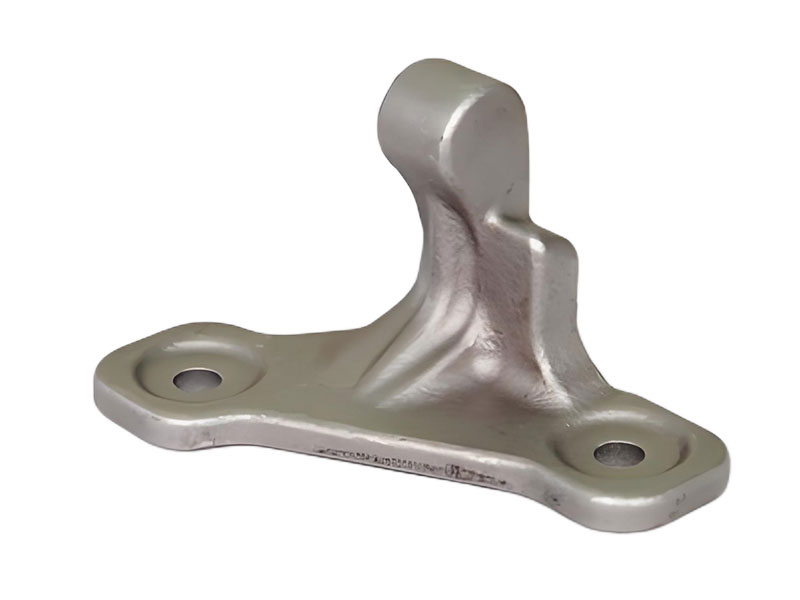

MAXTECH is a trusted leader in designing and manufacturing high-quality machining automotive parts, specializing in precision-engineered structural components for global automakers. Our latest collaboration with JG Automotive—an innovator in commercial vehicles—delivers custom automotive door hinge bases: core components that secure door hinges to the vehicle chassis, ensuring smooth door operation, structural stability, and long-term durability. As a key part of a vehicle’s exterior and safety system, door hinge bases demand exceptional load-bearing capacity, corrosion resistance, and dimensional accuracy; leveraging our decades of automotive manufacturing expertise and advanced production capabilities, we overcame unique technical challenges to support C Automotive’s full vehicle lineup launch.

Challenges & Pain Points in Door Hinge Base Production

Door hinge bases endure constant mechanical stress: they support the weight of vehicle doors (up to 60kg for SUVs/commercial vehicles), withstand repeated opening/closing cycles (100,000+ times), and face exposure to rain, road salts, UV radiation, and temperature fluctuations (-40°C to 85°C). The project with JG Automotive presented key hurdles:

• High Load-Bearing & Fatigue Resistance: The hinge bases needed to support 3x the door weight (180kg static load) and endure 150,000+ opening/closing cycles without deformation or cracking—failure would lead to door sagging, misalignment, or inability to open/close securely.

• Ultra-Precise Alignment Tolerances: Mounting holes and hinge mating surfaces required tolerances of ±0.03mm to ensure door alignment (gap variation ≤1mm) and smooth hinge operation. Misalignment would cause door rattling, water leakage, or wind noise.

• Corrosion & Environmental Durability: The bases needed to withstand 200,000+ km of exposure to road salts, rain, and UV rays without rusting or material degradation—critical for aesthetic consistency and long-term performance.

• Complex Structural Design: JG Automotive’s door designs featured curved chassis integration and multi-point mounting, requiring hinge bases with complex 3D geometries to fit tightly while avoiding interference with internal wiring and window mechanisms.

• Rapid prototyping and mass production: JG Automotive requires the installation and durability testing of 25 prototype hinge bases within 9 days, followed by small-scale production of 4000 within 4 weeks to meet its pre production schedule.

MAXTECH’s Solutions: Services, Materials & Processes

We tailored our manufacturing approach to balance strength, precision, and durability, combining advanced technologies, high-performance materials, and strict quality control.

1. Core Manufacturing Services

① CNC Machining (Primary Production Technology)

Application: Used for crafting the hinge base’s complex 3D geometries—including curved mounting flanges, precision bolt holes, and reinforcement ribs. We deployed CNC milling centers with high-precision linear guides (0.001mm repeatability) to achieve the ±0.03mm tolerance and seamless fit with JG Automotive’s chassis and hinge assemblies. Real-time on-machine inspection (Fully automatic image measuring instrument (Novator series, etc.)) was integrated to validate alignment and dimensions during machining, eliminating rework and ensuring consistency across batches.

Structural Optimization: Specialized CNC tool paths were designed to machine thickened sections at load-bearing points (e.g., hinge pin mounts) and lightweight recesses in non-critical areas, balancing strength and weight reduction (12% lighter than traditional designs).

② Sheet Metal Fabrication (Secondary Structural Components)

Application: Used for flat mounting plates and reinforcing brackets of the hinge bases. Processes included laser cutting (±0.02mm edge precision) for flat blanks and CNC bending (with precision dies) for forming structural flanges, ensuring rigidity without material fatigue.

Welding: Automated MIG welding was used to assemble multi-piece hinge bases, creating strong, uniform joints that meet AWS D1.1 automotive welding standards and withstand repeated mechanical stress.

③ 3D Printing (Rapid Prototyping)

Technology: Selected SLS (Selective Laser Sintering) 3D printing for prototype hinge bases—this additive technology enabled fast production of complex geometries (5-day lead time) for fitment testing, while SLM (Selective Laser Melting) 3D printing produced metal prototypes (7-day lead time) for durability testing.

Lead Time: Delivered 75 total prototypes across 3 models in 7 days (2 days ahead of C Automotive’s requirement), allowing early validation of design compatibility and performance.

④ Custom Surface Finishing

Tailored treatments to enhance corrosion resistance, UV protection, and structural integrity:

2. High-Performance Materials

Every material was selected for strength, durability, and compatibility with automotive exterior environments:

3. Quality Assurance & Testing

ISO Compliance: All processes adhere to ISO quality standards, with full documentation of material sourcing, machining parameters, and inspection results.

Performance Testing: Partnered with independent labs to conduct load-bearing tests (180kg static load for 1,000 hours), fatigue cycle tests (150,000+ opening/closing cycles), salt spray corrosion tests (600+ hours), and temperature cycle tests (-40°C to 85°C for 500 cycles)—all hinge bases met or exceeded C Automotive’s safety and durability requirements.

Fitment Validation: Every production unit underwent assembly testing with JG Automotive’s door and hinge modules to ensure seamless integration, no interference with internal components, and consistent door alignment.

Partner Feedback: JG Automotive’s Evaluation

“MAXTECH’s expertise in precision structural components was instrumental in launching our new door system. The hinge bases they delivered not only met our strict load-bearing and tolerance requirements but also exceeded our durability expectations—after 150,000+ cycle tests, there was zero deformation, and salt spray testing showed no corrosion.

What stood out most was their ability to handle complex geometries: the hinge bases fit perfectly with our curved chassis designs, and the integrated reinforcement ribs eliminated door rattling in our road tests. Their team’s willingness to adjust structural design based on our load analysis data made collaboration seamless.

We trust MAXTECH’s commitment to quality and precision, and we’re excited to expand our partnership for future exterior and structural components.”

— Director of Exterior Engineering, JG Automotive

Why Choose MAXTECH for Automotive Structural Components?

• ISO Certified: Rigorous quality control for safety-critical structural parts.

• Specialized Expertise: Decades of experience in door hinge bases, chassis components, and automotive exterior structural parts.

• Comprehensive Capabilities: CNC Machining, Sheet Metal Fabrication, and custom finishing—optimized for strength and precision.

• Design Compatibility: Expertise in 3D geometries to fit modern aerodynamic vehicle designs.

• Rapid Lead Times: low-volume production in 2–4 weeks.

• 24/7 Engineering Support: Fast quotation (within 24 hours) and real-time project updates.
