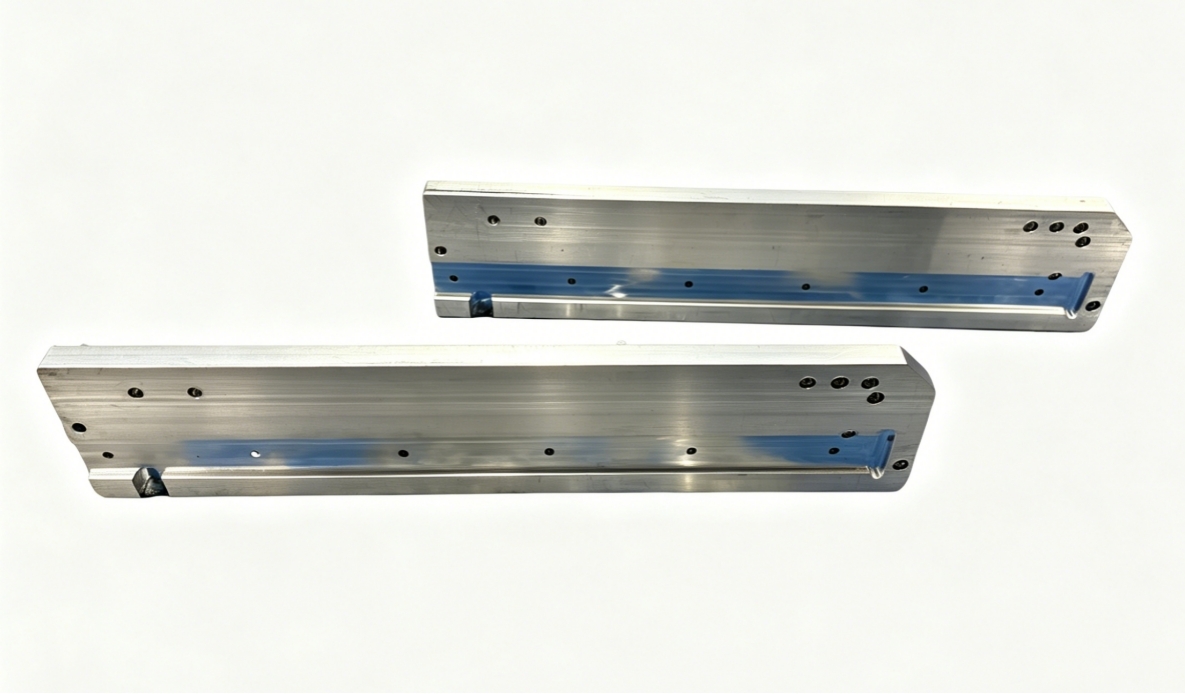

Precision CNC Machined Aluminum Profile Guide Rail

Our precision-machined aluminum profile guide rail is a high-performance, lightweight structural component engineered for industrial automation, linear motion systems, and custom equipment builds. Manufactured from premium aluminum alloy and finished with sandblasted natural anodizing, it delivers exceptional rigidity, corrosion resistance, and dimensional accuracy for demanding industrial applications.

Core Material & Surface Treatment

High-Grade Aluminum Alloy: Crafted from durable aluminum extrusion, offering an ideal balance of lightweight strength, excellent machinability, and corrosion resistance, perfect for reducing overall equipment weight while maintaining structural integrity.

Sandblasted Natural Anodizing Finish: The surface undergoes professional sandblasting followed by natural anodization, creating a uniform, wear-resistant, and anti-corrosive coating that enhances durability, improves aesthetics, and prevents oxidation in industrial environments.

Strict Dimensional Tolerance Control: Machined to ultra-tight tolerances (e.g., ±0.02mm for critical dimensions) per engineering drawings, ensuring perfect fit, alignment, and interchangeability with mating components.

Precision Design & Structural Features

Optimized Linear Guide Structure: The long, rigid profile features a precision-machined guide slot, designed for smooth, low-friction linear motion, making it ideal for linear slides, positioning stages, and automated moving components.

Multi-Position Mounting Holes: Precisely drilled threaded holes (M3, M4, M5) and through-holes are distributed along the rail, enabling flexible, secure mounting of sensors, fixtures, actuators, and other equipment components, simplifying assembly and integration.

Custom Machined Geometry: The profile is custom-machined with stepped grooves, chamfered edges, and specialized notches, tailored to specific equipment design requirements for seamless integration into automated production lines.

Burr-Free & Smooth Finishing: All edges are fully deburred and chamfered, eliminating stress concentrations, ensuring safe handling, and preventing damage to mating parts during assembly and operation.

Key Performance Advantages

✅ Lightweight & High Rigidity: Aluminum construction significantly reduces equipment weight, lowering energy consumption and improving system efficiency, while maintaining exceptional load-bearing capacity and structural stability.

✅ Superior Corrosion & Wear Resistance: The anodized finish provides long-lasting protection against rust, scratches, and chemical corrosion, extending service life in harsh workshop environments.

✅ Ultra-Precise Linear Motion: The precision-machined guide slot ensures smooth, consistent linear movement with zero play, guaranteeing long-term positioning accuracy for high-precision machinery.

✅ Easy Installation & Integration: Pre-drilled mounting holes and standardized dimensions enable quick, tool-friendly installation, reducing assembly time and labor costs.

✅ Customizable Design: Fully customizable to your exact specifications, including length, hole patterns, slot geometry, and surface treatments, to match unique equipment and automation system requirements.

Ideal Applications

Industrial Automation & Robotic Systems: Linear guide rails for robotic arms, automated production lines, and material handling equipment.

CNC Machine Tools & Linear Motion Systems: Guide components for machine slides, worktables, and positioning stages.

Packaging & Printing Equipment: Structural rails for packaging machinery, printing presses, and conveyor systems.

Custom Equipment & Fixtures: Mounting rails for custom automation fixtures, test equipment, and specialized machinery.

3D Printing & Lab Automation: Precision guide components for 3D printers, lab automation systems, and scientific instruments.

Customization & Order Information

Each aluminum profile guide rail is custom-manufactured to your exact engineering drawings, with full support for custom dimensions, hole patterns, surface treatments, and batch production. All units undergo 100% dimensional inspection and quality testing to ensure compliance with performance standards.

Contact our engineering team today for technical drawings, custom quotes, or bulk order inquiries.
