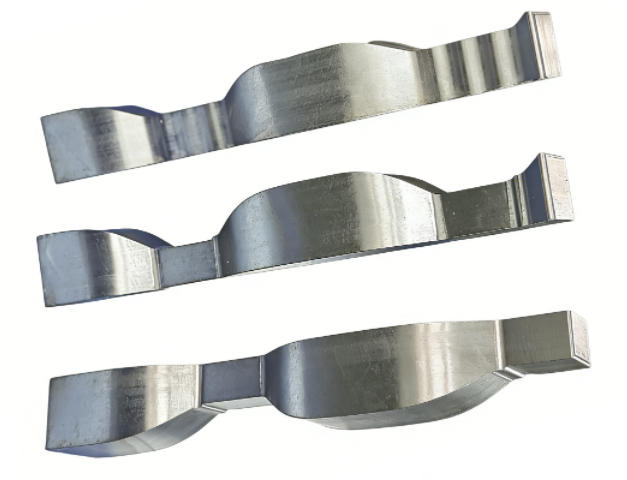

Our precision-engineered Wave Presser Foot is a core clamping component designed specifically for the demanding environments of building material machinery. Crafted from heat-treated 45# steel and finished with corrosion-resistant galvanizing, it delivers uniform pressure, exceptional stability, and long-lasting durability to ensure consistent, high-quality production in the building material industry.
1. Precision Manufacturing for Building Material Production
CAD-Optimized Wave Profile: The unique wave-shaped contour is precision-cut to CAD specifications, providing uniform clamping pressure across the contact surface—ideal for securing irregularly shaped building material workpieces without deformation or surface damage.
Ultra-Tight Tolerances:
Position and shape accuracy controlled to ±0.02mm, ensuring consistent dimensions for finished building materials.
Perpendicularity error between critical surfaces limited to ≤0.15mm, guaranteeing perfect alignment with forming molds, cutting tools, and conveyor systems.
6×M12 Mounting Holes (Depth 20mm): Robust threaded holes provide secure, vibration-resistant fastening, preventing loosening during high-speed production cycles.
2. Durable Material & Surface Treatment
Heat-Treated 45# Steel: Offers high tensile strength and wear resistance, withstanding the heavy impact and repeated clamping forces common in building material machinery.
Galvanized Finish: Protects against rust, corrosion, and wear, making it ideal for the dusty, humid, and high-moisture environments of building material production facilities.
1. Metal Building Material Forming Lines
In metal roof/wall panel forming machines, color steel tile production lines, and aluminum profile press lines:
The wave presser foot securely clamps metal coils, galvanized sheets, and aluminum blanks to forming molds, preventing slippage, wrinkling, or misalignment during high-speed rolling and bending processes.
Its wave contour perfectly matches the curved/ribbed profiles of building materials, ensuring uniform pressure distribution and preserving the integrity of surface coatings.
2. Building Material Cutting & Slitting Equipment
In plate shears, cross-cutters, and composite panel slitting machines (for gypsum boards, calcium silicate boards, and insulation panels):
It firmly holds workpieces during cutting, eliminating warping or shifting caused by tool impact, resulting in clean, straight edges and consistent dimensions.
The high-strength 45# steel construction resists fatigue from repeated high-frequency cutting operations.
3. Automated Assembly & Palletizing Lines
In precast wall panel assembly lines, decorative trim installation robots, and building material palletizing systems:
As a clamping module for robotic end-effectors or fixtures, it safely grips finished building materials (such as prefabricated wall panels, keel components, and decorative strips) during handling and assembly, preventing drops or collisions.
The uniform wave pressure avoids cracking fragile materials like ceramic tiles and gypsum boards.
4. Heat Treatment & Coating Lines
In building material drying ovens, coating lines, and curing furnaces:
It secures hanging or placed building material workpieces, preventing displacement caused by hot air circulation or spray forces, ensuring uniform coating and consistent drying results.
The galvanized surface withstands high temperatures and resists corrosion, avoiding contamination of building material surfaces.
✅Uniform Clamping: Wave contour prevents deformation and surface damage to building materials
✅High Precision: ±0.02mm accuracy ensures consistent product dimensions
✅Extreme Durability: 45# steel + galvanized finish resists impact, dust, and moisture
✅Vibration Resistance: Secure mounting eliminates loosening in high-cycle production
✅Versatile Compatibility: Fits all major building material machinery types
