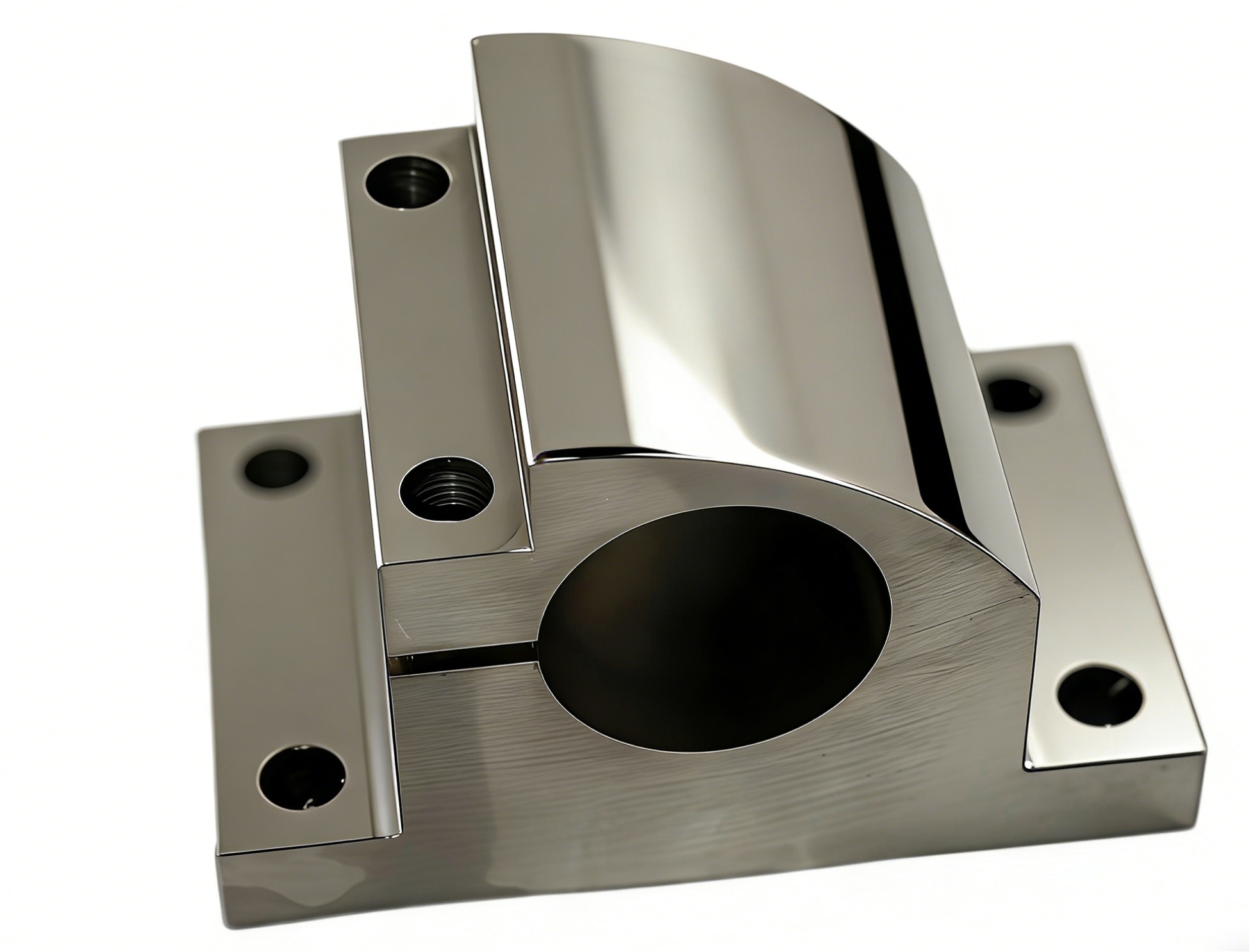

Large Column Adjustment Block (S45C Carbon Steel)

This Large Column Adjustment Block is a precision-engineered mechanical component, designed for precise height, position, and angle adjustment in industrial machinery, vertical columns, and heavy-duty equipment structures. Machined from high-quality S45C carbon steel, it delivers exceptional rigidity, load-bearing capacity, and dimensional stability for demanding industrial applications.

Core Material & Construction

S45C Carbon Steel: A premium medium-carbon structural steel, offering an ideal balance of high tensile strength, excellent toughness, and good machinability. It is widely used in heavy machinery components for its ability to withstand high static and dynamic loads without deformation.

Solid One-Piece Forging/Machining: Manufactured from a solid steel blank, ensuring maximum structural integrity and fatigue resistance for long-term, continuous operation.

Precision Design & Machining Features

1. Structural & Functional Geometry

Semi-Circular Bore Design: The central precision-machined semi-circular bore (with R13.50 radius) is engineered to securely clamp and support cylindrical shafts, columns, or round components. The split design enables adjustable clamping force for precise positioning.

Robust Base Flange: A wide, flat base flange (80×50mm overall dimensions) provides a stable mounting platform, with 6 precision-drilled threaded mounting holes for secure bolting to machine frames, worktables, or foundation structures.

Adjustment Interface: The integrated M6P (M6) threaded hole (1.0 pitch, 15mm depth) enables fine, controlled adjustment of the block's position or clamping force, allowing for precise alignment and calibration of vertical columns or machinery components.

2. Machining & Tolerance Control

Strict Dimensional Accuracy: All critical features (bore radius, hole positions, overall dimensions) are machined to tight tolerances, ensuring perfect fit and alignment with mating components.

Smooth Surface Finish: All functional surfaces (bore, mounting faces, thread holes) are precision-machined to a high-quality finish, ensuring smooth operation, even clamping pressure, and reliable sealing.

Edge & Corner Treatment: All sharp edges are deburred and chamfered, eliminating stress concentrations, preventing component damage during assembly, and ensuring safe handling.

3. Clamping & Adjustment Performance

Secure Clamping Mechanism: The split semi-circular bore design, combined with threaded clamping holes, creates uniform radial pressure around the shaft/column, locking it firmly in place while allowing for micro-adjustments as needed.

High Load-Bearing Capacity: The thick, solid steel structure and optimized geometry distribute heavy loads evenly, preventing sagging, shifting, or deformation under the weight of large vertical columns or machinery.

Durable Threaded Interface: The precision-machined M6 threaded hole ensures long-lasting, reliable adjustment performance, even with repeated use.

Key Applications

Vertical Column Support & Adjustment: For adjusting the height, position, and alignment of vertical columns in milling machines, CNC machining centers, and other heavy-duty machine tools.

Industrial Machinery Fixturing: As a precision adjustment block for workholding fixtures, jigs, and assembly line tooling.

Heavy Equipment Structural Adjustment: For aligning and adjusting structural components in construction machinery, material handling equipment, and industrial automation systems.

Precision Positioning Systems: In any application requiring secure, adjustable support for cylindrical shafts or vertical structural elements.

Order & Customization

This component is manufactured to exacting engineering standards, with custom dimensions, hole patterns, and material options available upon request. All units undergo strict quality inspection to ensure compliance with performance requirements.

For technical specifications, bulk orders, or custom machining requests, please contact our sales team to place your order or initiate an inquiry.
