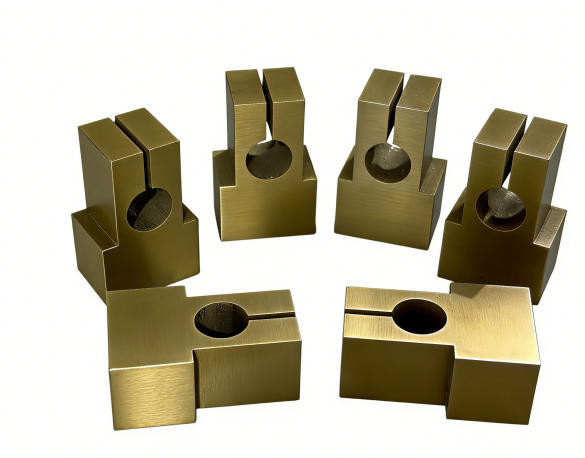

Precision Notch Water Spray Connector——Engineered for Reliable Industrial Fluid Delivery

Our Notch Water Spray Connector is a precision-machined fluid delivery component crafted from high-strength 6061-T6 aluminum alloy, designed to deliver stable, leak-free water spray for industrial cooling, cleaning, and lubrication systems. Built to exacting standards, it ensures precise nozzle positioning and consistent fluid flow in demanding production environments.

Core Technical Advantages

1. Premium Material & Surface Finish

6061-T6 Aluminum Construction: Delivers an ideal balance of lightweight strength, corrosion resistance, and machinability, perfect for continuous industrial use.

Natural Anodized Finish: The surface is treated with clear anodization, enhancing wear resistance and corrosion protection while maintaining a clean, professional appearance.

Edge Finishing: All sharp corners are deburred and chamfered to 0.5×45°, ensuring safe handling and preventing damage to mating components during installation.

2. Precision Machining & Design

Tight Tolerance Compliance: Unmarked dimensions follow GB/T 1804-92 M-grade tolerances, while geometric tolerances adhere to GB/T 1184-96 H-grade, guaranteeing perfect fit and alignment with nozzles, pipes, and mounting brackets.

Split-Notch Clamp Design: The unique split-notch structure enables secure, tool-free clamping of nozzles or tubes, ensuring stable positioning even under high-pressure fluid flow or vibration.

Integrated Rc1/8 Threaded Port: The precision-machined Rc1/8 threaded port provides a leak-tight connection for water lines, ensuring efficient fluid delivery to the nozzle.

M4 Mounting Holes: Precisely machined M4 mounting holes allow for secure, stable installation on machinery frames or fixture plates.

3. Durability & Operational Stability

Leak-Free Performance: Precision-machined threads and sealing surfaces eliminate fluid leakage, ensuring consistent cooling/cleaning in high-cycle industrial operations.

Corrosion Resistance: The anodized finish and 6061-T6 aluminum construction resist rust and chemical degradation, extending service life in dusty, humid workshop environments.

Low Maintenance Design: The robust structure and wear-resistant finish reduce the need for frequent replacements, minimizing downtime and operational costs.

Key Applications

Industrial CNC machining centers (coolant delivery)

Metalworking and stamping equipment (tool lubrication & cooling)

Building material production lines (dust suppression & cooling)

Automated assembly lines (precision cleaning & moisture control)

Packaging and printing machinery (surface cleaning & cooling)

Act fast to lock in this high-performance fluid delivery solution. Order today and enjoy leak-free operation, reduced downtime, and extended tool life!
