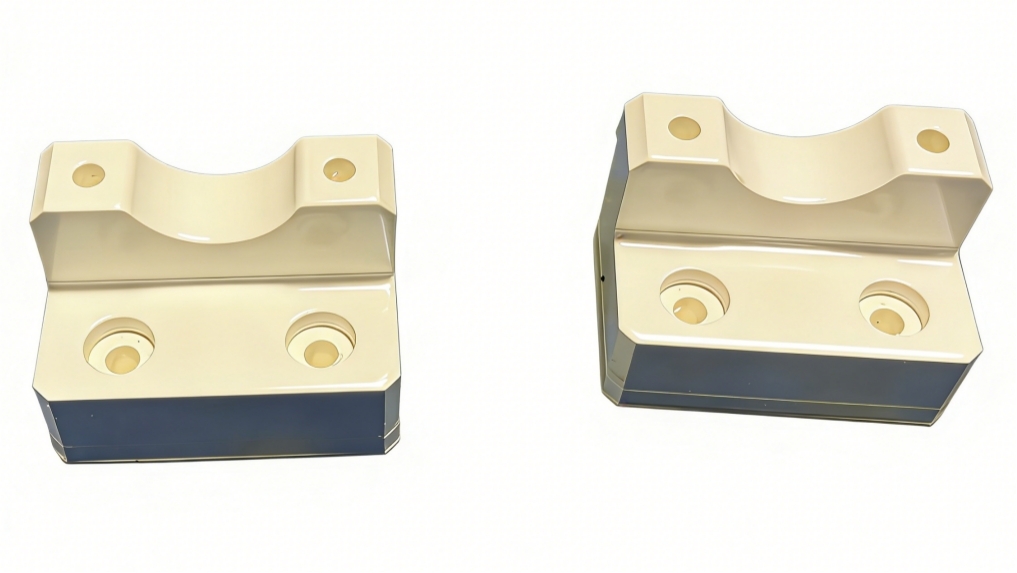

PVC Pipe Mounting Bracket (FM4910 Certified)

This is a precision-machined PVC pipe mounting bracket , a specialized structural component engineered for secure pipe support, positioning, and clamping in industrial, commercial, and fire safety systems. Manufactured from high-performance white PVC (Polyvinyl Chloride) sheet material, it delivers exceptional chemical resistance, flame retardancy, and dimensional stability for long-term service in demanding environments.

Core Material & Compliance

• Premium PVC Material: Crafted from white, fire-rated PVC sheet, offering excellent corrosion resistance, low moisture absorption, and high mechanical strength. It is non-conductive, making it ideal for electrical and fire safety applications.

• FM4910 Fire Safety Certification: The material meets the strict FM4910 fire rating standard, ensuring superior flame resistance and low smoke emission, which is critical for use in data centers, clean rooms, and industrial facilities with stringent fire safety requirements.

• Dimensional Stability: PVC maintains consistent shape and performance across a wide temperature range, resisting warping, shrinking, or expanding under normal operating conditions.

Precision Design & Machining Features

Optimized Pipe Support Geometry: The component features a precision-machined semi-circular (R12) saddle profile, designed to securely cradle and support round pipes or tubes, ensuring stable alignment and preventing movement or vibration.

Integrated Mounting Interface:

• Top Mounting Holes: 2 through-holes (Φ4.5, with countersink C4.5) for direct pipe clamp installation.

• Base Mounting Holes: 2 ST4 self-tapping threaded holes (with M4×2D-304 stainless steel wire thread inserts) for secure, durable mounting to equipment frames, walls, or support structures. The thread inserts enhance pull-out strength and prevent thread wear in the PVC material.

• Precision Machining Tolerances: All critical dimensions are machined to exacting standards, with unmarked linear and angular tolerances per the specified table, ensuring a perfect fit and alignment with mating pipes and mounting hardware.

• Edge & Surface Finishing: All sharp edges are deburred and chamfered (C2, R0.1~0.3) to eliminate stress concentrations, prevent pipe damage, and ensure safe handling during installation. The surface is finished to Ra 3.2μm, free of burrs, scratches, or other defects.

• L-Shaped Structural Design: The rigid L-shaped profile provides excellent load-bearing capacity and structural rigidity, ensuring reliable support for pipes in both horizontal and vertical installations.

Functional Advantages

• Secure Pipe Positioning: The saddle design evenly distributes clamping pressure around the pipe, preventing damage while ensuring a tight, vibration-resistant hold.

• Corrosion & Chemical Resistance: PVC is inherently resistant to most acids, alkalis, and chemicals, making it ideal for use in chemical processing, water treatment, and industrial plumbing systems.

• Lightweight & Easy Installation: The low weight of PVC simplifies handling and installation, while the pre-machined mounting holes and included stainless steel hardware enable quick, tool-free assembly (supplied with 2 M4×2D-304 stainless steel screws, ready for installation).

• Low Maintenance: The durable, non-porous PVC surface is easy to clean and resistant to mold, mildew, and UV degradation, requiring minimal maintenance over its service life.

Key Applications

• Fire Sprinkler & Fire Protection Systems: FM4910 certification makes it the ideal choice for fire safety pipework in commercial buildings, data centers, and industrial facilities.

• Industrial Plumbing & Process Piping: For supporting PVC, CPVC, or metal pipes in chemical processing, water treatment, and manufacturing plants.

• HVAC & Mechanical Systems: For securing refrigerant lines, condensate pipes, and ventilation ductwork

• Clean Room & Laboratory Environments: The non-contaminating, fire-rated material is perfect for use in clean rooms, pharmaceutical labs, and food processing facilities.

• Electrical & Telecommunication Cable Management: For supporting cable trays and conduit systems.

Order & Customization

This component is supplied in standard 46×30×25mm dimensions, with custom sizes, hole patterns, and material options available upon request. All units undergo 100% visual inspection to ensure compliance with customer C-level quality standards, and are packaged for standard ambient environment shipping.

For bulk orders, custom specifications, or technical inquiries, please contact our sales team to place your order.
