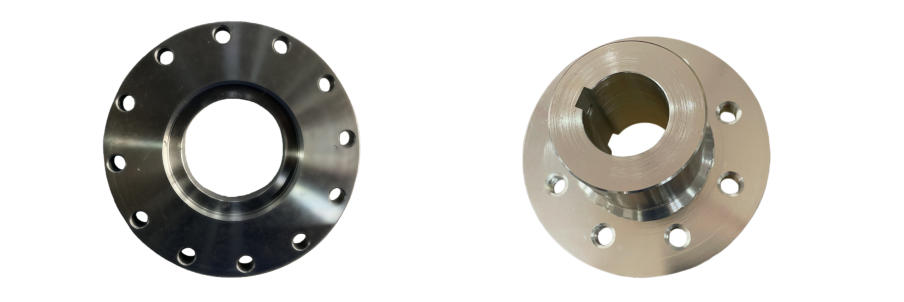

Our precision-machined motor flange (part number XCG8-10-003) is a high-performance mechanical connection component, engineered to deliver secure, stable mounting and reliable power transmission for industrial motors, drive systems, and automation equipment. Manufactured from premium AISI 304 stainless steel, it combines exceptional corrosion resistance, structural rigidity, and dimensional accuracy to meet the most demanding industrial operating conditions.
AISI 304 Stainless Steel Construction: This food-grade, corrosion-resistant stainless steel offers outstanding resistance to rust, oxidation, and chemical corrosion, making it ideal for harsh workshop environments, food processing facilities, water treatment systems, and outdoor applications. It maintains excellent mechanical strength and dimensional stability across a wide temperature range, ensuring long-term performance without deformation.
Strict Tolerance Compliance: All unmarked geometric tolerances adhere to GB/T 1184-1996 K-grade standards, guaranteeing precise alignment, concentricity, and fit with motor shafts, gearboxes, and mating equipment components, eliminating runout, vibration, and misalignment issues during operation.
Edge & Surface Finishing: All sharp edges are deburred and chamfered to 0.5×45°, eliminating stress concentrations, preventing component damage during assembly, and ensuring safe handling. The entire component is precision-machined to a smooth, burr-free surface finish, free of scratches, dents, or other surface defects.
Optimized Flange Geometry: The circular flange design features a thick, rigid base with uniformly distributed mounting holes, ensuring a secure, evenly distributed connection to motor housings, equipment frames, or foundation structures. This design effectively distributes axial and radial loads, preventing stress fatigue and ensuring long-term structural integrity.
Precision Central Bore: The central bore is machined to tight dimensional tolerances, ensuring a perfect, interference-free fit with motor shafts, enabling efficient power transmission and minimizing energy loss.
Lightweight & High-Rigidity Balance: The optimized structure delivers an ideal balance of low weight and high rigidity, reducing rotational inertia, making it suitable for high-speed motor applications, and improving overall system efficiency.
Versatile Mounting Compatibility: The standardized hole pattern ensures compatibility with a wide range of industrial motor models and equipment, simplifying installation and replacement.
Secure & Stable Connection: The robust flange structure and precise machining create a tight, vibration-resistant connection, preventing loosening or shifting under dynamic loads, high-speed rotation, or continuous operation.
Superior Corrosion & Durability: AISI 304 stainless steel provides excellent resistance to moisture, chemicals, and atmospheric corrosion, extending service life and reducing maintenance requirements, even in humid or corrosive environments.
Easy Installation & Maintenance: The pre-machined mounting holes and chamfered edges enable quick, tool-friendly installation, while the durable stainless steel material requires minimal maintenance over its service life.
Sanitary & Food-Safe: The non-porous, corrosion-resistant AISI 304 material meets food safety and hygiene standards, making it suitable for use in food processing, pharmaceutical, and clean room environments.
Industrial Motor & Drive Systems: For mounting and connecting electric motors, gearboxes, and speed reducers in industrial machinery.
Automation & Robotic Systems: As a connection component for robotic arms, automated production lines, and material handling equipment.
Food & Beverage Processing: Sanitary-grade connection for motors in food processing, packaging, and beverage production equipment.
Water Treatment & Fluid Handling: Corrosion-resistant mounting for pumps, mixers, and fluid transfer systems.
CNC Machining & Packaging Equipment: Precision connection for motors in machine tools, packaging machinery, and printing equipment.
This motor flange is manufactured to exacting engineering standards, with custom dimensions, hole patterns, material options (including other stainless steel grades or alloy steels), and surface treatments available upon request. All units undergo 100% quality inspection to ensure compliance with performance requirements.
For technical data sheets, custom specifications, bulk orders, or pricing inquiries, please contact our sales team today.
