Custom Complex Symmetrical Component | Wire EDM Machining

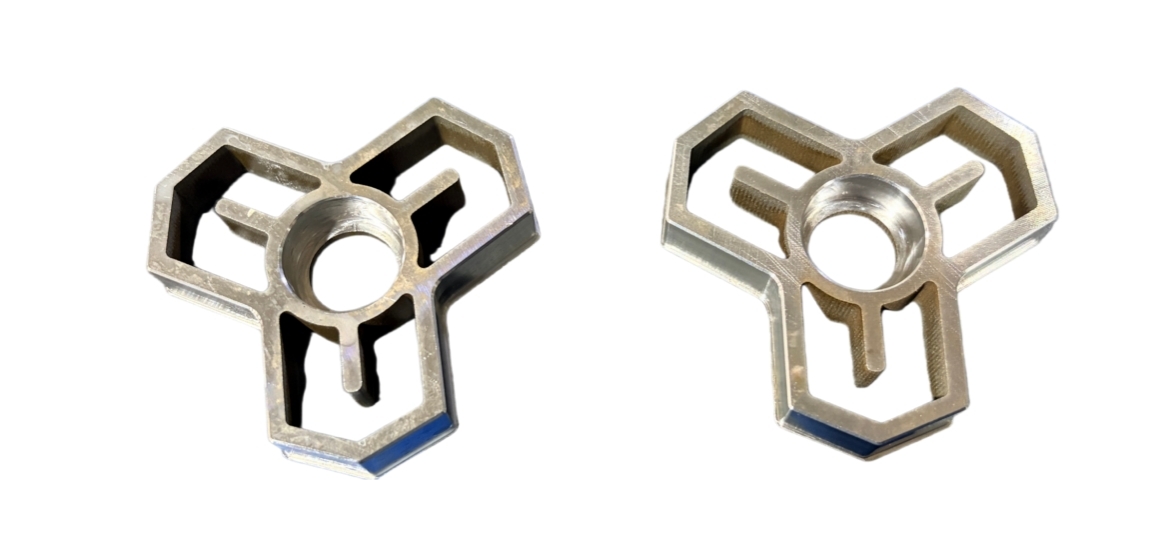

This premium non-standard mechanical component is fully manufactured via high-precision Wire Electrical Discharge Machining (Wire EDM / wire cutting) technology. It adopts an integrated three-way symmetrical hollow structure with intricate inner rib contours, special-shaped open cavities and precision central positioning bore, perfectly realizing ultra-complex profile forming that conventional CNC milling is hard to achieve.

Core Product Highlights

Advanced Wire EDM Processing Technology

Adopts precise wire electrical discharge machining for overall integral forming. Non-contact machining process brings no cutting stress, no deformation, no tool marks on workpiece surface, perfectly adapted for ultra-complex hollow structures, narrow grooves and special-shaped closed contours. Achieves ultra-fine dimensional accuracy, smooth section finish and perfect contour precision.

High-Strength Solid Steel Material

Made of premium solid structural steel, with excellent overall rigidity, compressive resistance and structural stability. The one-piece integral forming structure eliminates assembly gaps, ensuring long-term stable performance under industrial working conditions.

Optimized Complex Structural Design

Unique three-lobe symmetrical hollow framework, with central precision bore and multi-directional internal support ribs. Reasonable lightweight structure greatly reduces overall weight while fully retaining sufficient mechanical strength and load-bearing performance.

Reliable Full-process Quality Control

Complete programming verification, strict dimensional tolerance control, full deburring & edge finishing. Stable size consistency for both single prototype and mass batch production.

Ideal Application Scenarios

Precision automation equipment structural parts, special-shaped mechanical fixtures, new energy equipment functional components, high-end non-standard mechanical parts, precision mould inserts and special-shaped hardware components with complex profiles.

Contact us today for your custom Wire EDM machining projects, drawing customization, technical consultation and bulk quotation!
