Accurate holes are critical in metal components used for assembly, fastening, fluid flow, alignment, heat dissipation, and electrical connection. When a hole is slightly off-position, undersized, oversized, or poorly finished, the entire part may fail during assembly or final use. This is why professional CNC drilling services are widely used for custom metal parts that require repeatable hole quality across prototypes, small batches, and production runs.
This guide explains how CNC drilling works, what affects hole accuracy, which materials can be drilled, and what engineers should consider before sending drawings for quotation. It is designed for buyers, product engineers, and sourcing teams who need reliable CNC drilled parts from a manufacturing partner.
CNC drilling is a computer-controlled machining process used to create round holes in metal or plastic workpieces. Unlike manual drilling, CNC drilling follows programmed coordinates, feed rates, spindle speeds, and tool paths, helping manufacturers achieve consistent hole positions and repeatable quality from part to part.
In real manufacturing projects, CNC drilling may be used alone or combined with CNC milling, turning, tapping, countersinking, counterboring, reaming, and surface finishing. For example, a bracket may need drilled mounting holes, a milled profile, tapped threads, and a protective finish. Choosing a supplier that can manage these related processes helps reduce communication gaps and production risk.
MAXTECH provides CNC machining, CNC milling, CNC turning, CNC drilling, and related precision machining services for custom metal components.
Hole accuracy is not determined by the CNC machine alone. It depends on the drawing requirements, material behavior, tool condition, workholding, machine rigidity, drilling depth, chip evacuation, coolant strategy, and inspection method.
For simple clearance holes, standard drilling may be enough. For alignment holes, press-fit holes, bearing seats, or functional assembly holes, tighter tolerance control may be required. MAXTECH's published CNC drilling capability states that drilling accuracy can reach tolerances as tight as ±0.005 mm, depending on project requirements, machine setup, material, and inspection conditions.
In practical quoting, engineers should clearly define which holes are truly critical. Applying very tight tolerances to every hole may increase machining time, inspection cost, and lead time. A better approach is to separate general holes from functional holes and specify tolerance only where it directly affects assembly or performance.
Deep holes are more difficult to control than shallow holes because chips are harder to evacuate and tool deflection becomes more likely. As the depth increases, the drilling process may require peck drilling, special tooling, coolant-through tools, or additional inspection.
If a hole does not need to be deep for functional reasons, avoid over-designing it. Shorter holes are usually easier to machine, easier to inspect, and more stable in production.
Whenever possible, design holes around standard drill sizes. Standard hole sizes help reduce custom tooling, tool changes, and secondary machining steps. Non-standard hole diameters may require interpolation with an end mill, reaming, boring, or special tooling, which can increase cost and cycle time.
A rigid setup is essential for accurate drilling. Thin plates, small brackets, long parts, and irregular components may need custom fixtures to prevent vibration, shifting, or deformation during machining. If the part has multiple holes across different surfaces, multi-axis machining or additional setups may be needed.
CNC drilling can be applied to many metals and engineering plastics, but each material behaves differently. Material hardness, ductility, heat conductivity, and chip formation all influence the choice of drill type, cutting speed, feed rate, and coolant.
Material | Drilling Considerations | Typical Application Examples |
Aluminum | Easy to machine, but chip evacuation and burr control should be managed carefully. | Electronic housings, brackets, heat sink parts, lightweight structural components. |
Stainless Steel | Requires suitable tooling, stable cutting parameters, and heat control to reduce work hardening. | Industrial parts, appliance parts, corrosion-resistant components. |
Carbon Steel | Generally machinable, but tool selection depends on hardness and required hole finish. | Mechanical parts, fixtures, brackets, automotive components. |
Brass | Good machinability, suitable for precision holes, threaded holes, and electrical components. | Connectors, bushings, fittings, precision hardware. |
Copper | Soft and conductive, but may require careful chip control and tool geometry selection. | Electrical terminals, conductive parts, heat transfer components. |
Engineering Plastics | Lower cutting force than metals, but heat buildup and deformation should be controlled. | Insulation parts, lightweight housings, functional prototypes. |
MAXTECH's CNC drilling page lists aluminum, copper, steel, titanium alloy, and engineering plastics such as ABS, PC, and nylon as processable materials. For buyers comparing cnc drilling china suppliers, material experience is important because the same hole design may require different machining strategies in aluminum, stainless steel, copper, or plastic.
Drilling is often the first process used to create a hole, but it is not always the final process. Depending on the required diameter, tolerance, roundness, and surface finish, manufacturers may use additional operations such as milling, boring, or reaming.
Process | Main Purpose | Best For | Limitations |
CNC Drilling | Creates round holes quickly and repeatably. | Clearance holes, mounting holes, pilot holes, through-holes, and general hole-making. | May not be enough for very tight bore tolerance or fine surface finish requirements. |
CNC Milling | Uses rotating cutters to create profiles, pockets, slots, and complex features. | Non-round features, flat surfaces, pockets, slots, and irregular hole-related geometry. | Usually slower than drilling for simple round holes. |
CNC Boring | Improves the accuracy and size of an existing hole. | Precision bores, bearing seats, and holes requiring better alignment or roundness. | Requires a pre-existing hole and more setup time than basic drilling. |
Reaming | Finishes a drilled hole to improve size accuracy and surface finish. | Dowel pin holes, close-fit holes, and holes with tighter final diameter control. | Not intended for removing large amounts of material. |
Tapping | Creates internal threads after drilling a pilot hole. | Screw holes, fastening points, and assembly features. | Requires correct pilot hole size and thread specification. |
If your part requires drilled holes plus profiles, slots, or pockets, MAXTECH's CNC milling service can support related features in the same project. For cylindrical components, shafts, or turned parts with axial holes, the custom cnc turning services may also be relevant.
Standard drill sizes are easier to source and faster to machine. If a hole diameter is not functionally critical, choose a standard size instead of an unusual decimal dimension. This can help reduce custom tooling needs and secondary machining time.
Not all holes need the same tolerance. Identify alignment holes, press-fit holes, bearing holes, sealing holes, and threaded holes clearly. This helps the manufacturer choose the correct process, inspection method, and cost structure.
Blind holes are sometimes necessary, but they are harder to clean and inspect than through-holes. Deep blind holes can also trap chips and increase tool wear. If the design allows, use through-holes or reduce blind hole depth.
Holes placed too close to an edge may cause deformation, breakout, or weak material around the hole. For structural parts, make sure the hole location leaves enough surrounding material for strength and stable machining.
If the drilled hole will be tapped, provide the thread type, thread depth, class of fit, and whether the thread is blind or through. Missing thread information can delay quotation and production.
Drilled holes often create burrs at the entry or exit side. If the part will be used in electronics, assembly, sealing, or sliding applications, specify deburring, chamfering, or surface finishing needs. MAXTECH also provides surface finish services to support finished CNC machined and stamped components.

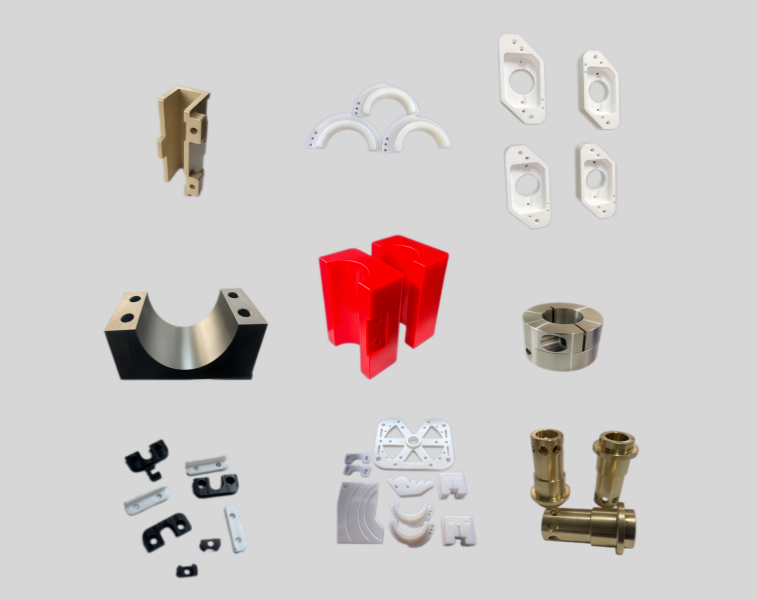

MAXTECH offers custom CNC drilling services for precision metal and plastic parts. According to MAXTECH's published CNC drilling information, the company supports three-axis, four-axis, and five-axis CNC drilling capabilities for different part geometries and hole requirements.
Capability Item | Published MAXTECH Information | What It Means for Buyers |
Precision Capability | Tolerances as tight as ±0.005 mm, depending on project requirements. | Suitable for projects where hole position and dimensional accuracy are important. |
Small CNC Drilling Machine | Approx. 730 mm × 280 mm × 120 mm maximum part size; maximum drilling diameter 20 mm. | Suitable for smaller precision parts, brackets, housings, and custom components. |
CNC Plate Drilling Machine | Can process a 2000 mm × 1000 mm × 80 mm plate; maximum drilling diameter Φ50 mm. | Useful for larger plates and industrial components requiring multiple holes. |
Material Range | Aluminum, copper, steel, titanium alloys, ABS, PC, nylon, and other materials. | Supports different sourcing needs across mechanical, electronics, appliance, and industrial sectors. |
Related Processes | CNC machining, CNC turning, CNC milling, CNC drilling, CNC lathe machining, and wire cutting. | Helps buyers manage multi-process parts with fewer supplier coordination issues. |
MAXTECH CNC is a precision machining and metal stamping factory based in Hangzhou, China. The company has focused on CNC services for more than 15 years and supports custom machining projects across automotive, electronics, home appliance, mechanical, communication, and industrial applications.
For buyers looking for cnc drilling china manufacturing support, MAXTECH can help review drawings, evaluate hole requirements, recommend suitable machining processes, and support production from prototype to batch manufacturing.
Engineering review: MAXTECH can evaluate hole size, depth, material, tolerance, and process feasibility before production.
Multi-process support: CNC drilling can be combined with milling, turning, tapping, deburring, and surface finishing.
Material flexibility: The service covers common metals such as aluminum, stainless steel, brass, copper, and steel, as well as selected engineering plastics.
Custom manufacturing: Suitable for non-standard parts, functional components, and OEM precision metal parts.
Quotation support: Buyers can submit drawings, material requirements, quantity, and tolerance information for project evaluation.
To start a project, visit MAXTECH's CNC drilling services page and send your drawing, material, quantity, tolerance requirements, and surface finish needs for review.
A complete RFQ helps reduce back-and-forth communication and improves quotation accuracy. Before sending your project, prepare the following information:
RFQ Item | Why It Matters |
2D drawing and 3D model | Helps confirm dimensions, hole locations, tolerances, and part geometry. |
Material grade | Determines tool selection, cutting parameters, and machining cost. |
Hole diameter and depth | Directly affects drilling method, tool length, and inspection approach. |
Critical tolerance notes | Helps separate standard holes from functional precision holes. |
Thread, chamfer, or countersink requirements | Ensures secondary hole features are included in the quotation. |
Quantity and production stage | Clarifies whether the project is a prototype, pilot run, or mass production order. |
Surface finish requirement | Determines whether deburring, anodizing, plating, polishing, or other treatments are needed. |
CNC drilling services are used to create accurate holes in custom parts for fastening, alignment, assembly, fluid passage, wiring, heat dissipation, and threaded connections. They are common in automotive, electronics, appliances, mechanical equipment, and industrial components.
CNC drilling can be used for aluminum, stainless steel, carbon steel, brass, copper, titanium alloys, and selected engineering plastics such as ABS, PC, and nylon. The best tool and cutting parameters depend on the material grade and hole requirements.
Accuracy depends on the machine, fixture, material, tool, hole depth, and inspection method. MAXTECH's published CNC drilling capability states that tolerances can be as tight as ±0.005 mm for suitable projects and controlled conditions.
Not always. Drilling is efficient for creating holes, but precision bores or close-fit holes may require secondary operations such as reaming, boring, or finishing. The correct process depends on the required tolerance, surface finish, and function of the hole.
Use standard hole sizes, avoid unnecessary tight tolerances, reduce very deep blind holes, provide clear drawings, and specify only the truly critical features. These design choices can reduce tooling, machining time, and inspection complexity.
A capable CNC drilling China supplier can support custom machining, material sourcing, multi-process production, and export manufacturing. MAXTECH provides CNC drilling together with CNC machining, milling, turning, and surface finishing support for custom precision parts.
CNC drilling looks simple, but hole accuracy depends on many engineering details: tolerance, depth, material, tool selection, fixture stability, chip evacuation, and inspection. For better results, designers should use standard hole sizes where possible, identify critical holes clearly, avoid unnecessary deep blind holes, and provide complete RFQ information.
MAXTECH offers custom CNC drilling services for precision parts made from aluminum, stainless steel, brass, copper, steel, titanium alloys, and selected engineering plastics. If your project requires accurate holes, threaded features, milled profiles, or finished metal components, MAXTECH can help review your drawing and recommend a suitable manufacturing solution.
Send your drawings, material requirements, quantity, and tolerance notes to MAXTECH to get a CNC drilling quotation for your next project.
