Q235A Carbon Steel Precision Cylinder Mount Plate | Pneumatic Module Fixing Bracket

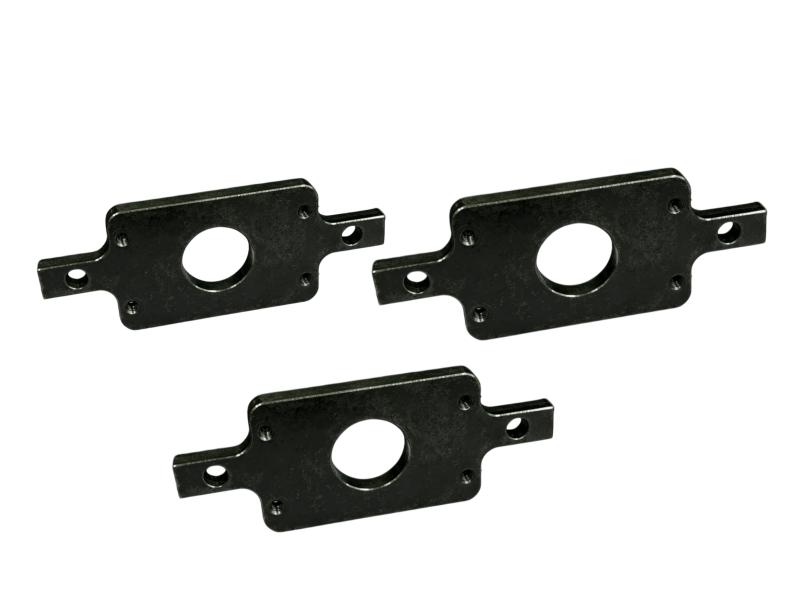

This Q235A steel cylinder mount plate is dedicated fixing component for automation pneumatic equipment & air cylinder assemblies. CNC integrated machined with central locating bore, corner threaded holes and two side mounting holes, precisely fixes cylinder and ensures coaxial movement of piston rod.

Core Specs

Industries: Custom automation line, pneumatic fixture, conveyor equipment, pneumatic actuator

Process: Q235A steel blanking → CNC profiling & boring → tapping → deburr & edge rounding → black oxide anti-rust finish

Precision: Key tolerance ±0.02mm, center hole position ≤0.03mm, thread perpendicularity ≤0.02mm, Ra3.2 surface

Equipment: CNC milling machine, machining center, tapping center

Material: Q235A carbon steel, good rigidity, cost-effective & easy machining

Post-processing: Deburr, chamfer, black oxide, zinc plating

Lead time: Samples3-4d, bulk5-10d

Advantages

✅ Central bore accurately clamps cylinder for anti-shift positioning

✅ Combined corner & side holes for uniform fastening & easy assembly

✅ Cost-efficient Q235 steel ideal for mass automation matching

✅ Black oxide coating prevents rust under humid factory conditions

Solid steel cylinder mount, centered positioning avoids shifting; multi-hole fastening stabilizes cylinder for reliable pneumatic operation.
