Precision Mold Guide Bushing: Engineered for Accurate Die Alignment

Product Overview

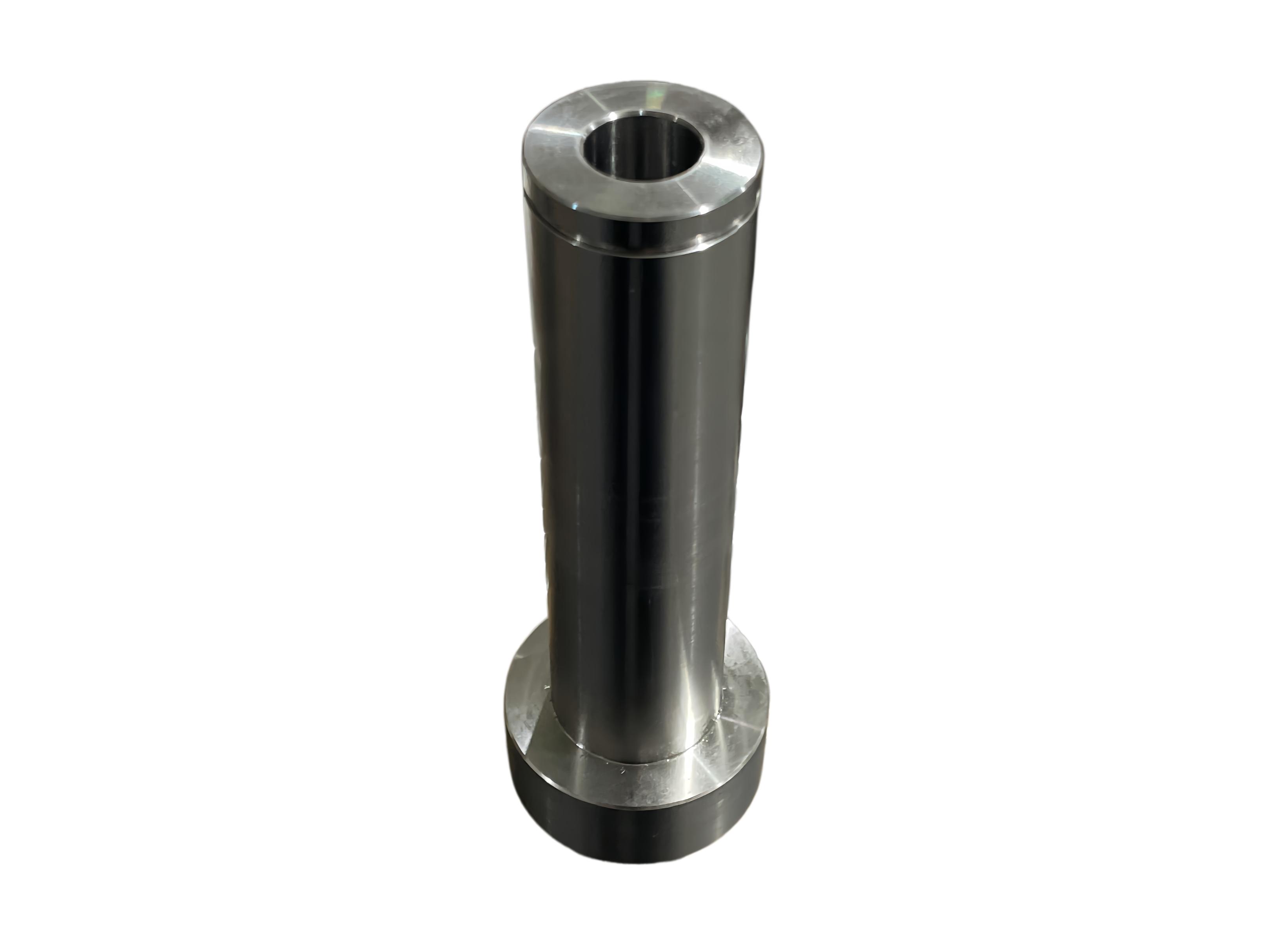

This high-performance precision mold guide bushing is manufactured from high-grade steel, designed to provide accurate alignment and smooth guidance in stamping dies, injection molds, and industrial tooling systems. Its precision-machined inner bore and outer diameter ensure consistent fit with guide pins, minimizing wear and ensuring long-term mold stability.

Manufacturing & Quality

Process: Produced via CNC turning + quenching & tempering composite machining, ensuring dimensional accuracy, surface hardness, and wear resistance critical for mold applications.

Tolerance: Dimensional accuracy controlled within ±0.01mm, complying with mold industry standards to guarantee precise alignment and repeatable performance.

Core Equipment: High-precision CNC lathes and heat treatment furnaces, paired with rigorous in-process inspection.

Surface & Performance

The precision mold guide bushing undergoes quenching, polishing, and anti-rust treatment post-treatments, enhancing hardness and corrosion resistance. The smooth inner bore reduces friction and wear, extending the service life of both the bushing and mating guide pins.

Customization & Lead Time

Customization: Available in custom inner/outer diameters, lengths, and hardness specifications to match your unique mold requirements.

Lead Time: 7-10 days for samples; 10-15 days for bulk orders.

Applications

Ideal for stamping dies, injection molds, progressive dies, and precision tooling, providing reliable guidance and alignment for consistent, high-quality mold operations.

Contact our engineering team today to discuss your custom precision mold guide bushing needs – we support projects from prototype validation to full-scale production.
