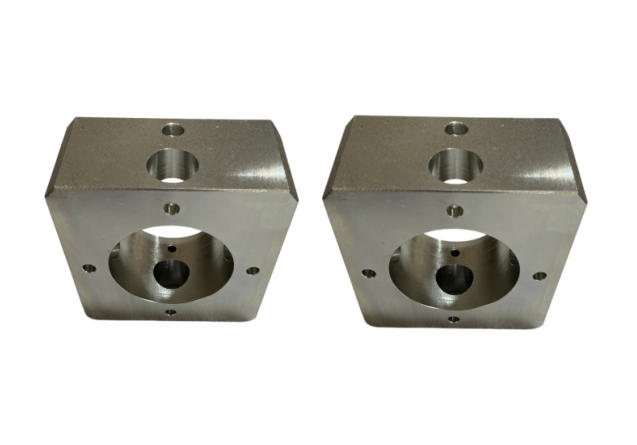

6061 Aluminum Precision Hydraulic Manifold Block | Integrated Oil Circuit High Precision Valve Body

This precision hydraulic manifold block is a core integrated oil circuit component for hydraulic & pneumatic automation systems. Made of 6061-T6 aluminum via full CNC milling & boring, multi-step holes are precisely formed to integrate internal oil channels, simplifying pipeline layout and compacting equipment structure.

Core Specs

Application: Hydraulic power packs, automation hydraulic equipment, construction machinery hydraulics, custom pneumatic modules

Process: Aluminum blanking → CNC multi-side milling/boring/drilling → deburr & chamfer → passivation/anodizing

Precision: Hole tolerance ±0.02mm, position tolerance ≤0.03mm, inner bore Ra1.6

Machinery: Vertical machining center, CNC boring-milling center, tapping machine

Material: 6061-T6 aluminum, lightweight, anti-rust, excellent hydraulic oil compatibility

Post-processing: Deburr, chamfer, natural passivation, hard anodizing

Lead time: Samples 4-6 days, bulk 7-12 days

Advantages

✅ Integrated inner oil paths to eliminate messy external tubing

✅ Precision CNC bore keeps minimal fluid leakage

✅ Lightweight anti-rust aluminum fits long-cycle hydraulic operation

✅ Standard mounting holes for easy solenoid valve & cylinder fitting

Integrated inner oil circuit, zero leakage with precision; lightweight aluminum, steady hydraulic performance.
