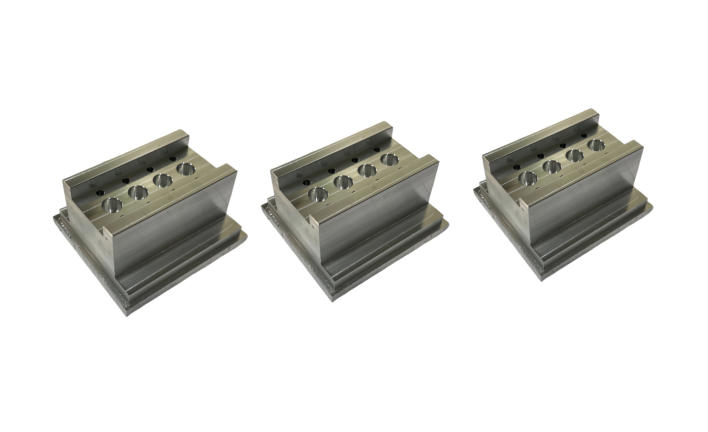

6061 Aluminum Cylinder Mount Base | Integrated Fix Base for Pneumatic Valve Island

Made of 6061-T6 aluminum via full CNC milling & multi-hole drilling, this base integrates multiple air passages for pneumatic cylinder & valve island assembly. Multi-size front holes for air port connection, flange mounting holes on two sides for frame fixing, silver anodized for anti-corrosion & lightweight performance.

Core Specs

Industries: Custom automation line, pneumatic valve bank, fixture pneumatic assembly, conveyor air unit

Process: 6061 aluminum cutting → CNC profiling & multi-hole machining → flange drilling → deburr → silver natural anodizing

Precision: ±0.02mm critical tolerance, hole ±0.03mm, hole position ≤0.03mm, inner Ra1.6

Equipment: Vertical machining center, CNC drill-mill, anodizing line

Material: 6061-T6 Al, lightweight, anti-rust & cost-effective

Post-processing: Deburr, chamfer, natural/hard anodizing

Lead time: Samples3-4d, bulk6-10d

Advantages

✅ Multi-group holes integrate air channels to reduce external pipe fittings

✅ Dual-side flange holes ensure tight stable mounting on equipment frame

✅ Light aluminum cuts overall module weight by over half vs steel

✅ Silver anodizing resists moisture & oil corrosion in pneumatic environment

Light aluminum cylinder base, integrated holes simplify air piping; anodized anti-corrosion, reliable base for pneumatic assemblies.
