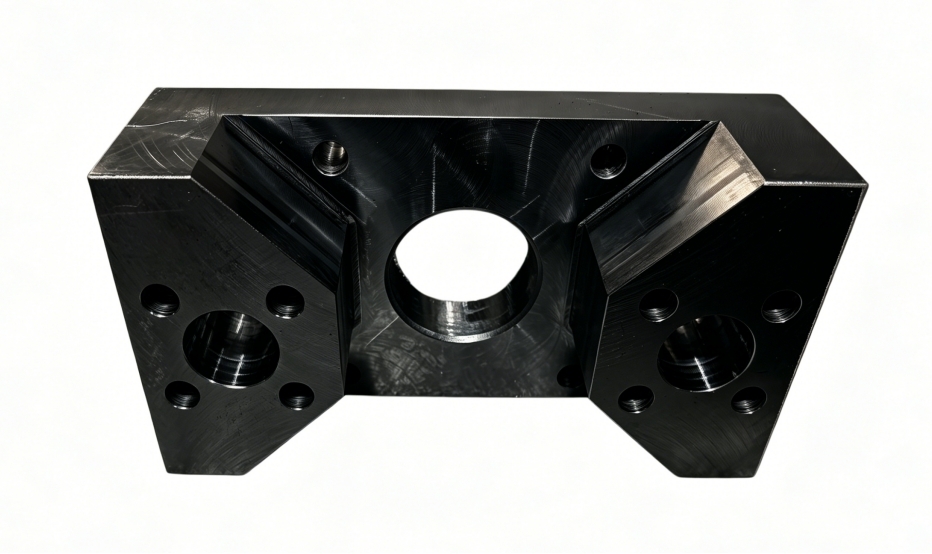

Precision Machined Q235A Carbon Steel Mounting End Plate

This precision machined mounting end plate is fabricated from premium Q235A carbon steel, serving as a rigid structural mounting base specially engineered for shaft assembly and shaft system positioning in heavy-duty automation machinery and robotic equipment.

Key Features

Precision Machining Performance

It adopts high-precision CNC integrated machining process, with the central bore strictly machined to Φ45 H8 tolerance, perfectly fitting shafts and bearing components. Symmetrically arranged stepped mounting holes further strengthen assembly stability and installation accuracy. All overall dimensions are manufactured in full compliance with GB/T 1804-m general tolerance standard, ensuring excellent part interchangeability for batch assembly and after-sales replacement.

Stable & Durable Structure

Made of high-quality Q235A carbon steel, the component possesses good structural rigidity, outstanding mechanical strength and reliable impact resistance. It can steadily bear static and dynamic loads for a long time, fully adapting to complex working conditions of heavy-load operation.

Fine Workmanship for Direct Assembly

All edges and corners are professionally deburred and rounded with standard chamfer treatment. The surface is clean and free of burrs, enabling effortless, smooth and error-free on-site installation and matching with other mechanical components.

Applications

Widely applied to robot joint assembly bases, heavy-duty logistics conveyor systems, industrial machinery shaft fixing supports, as well as various automation equipment structural connection and positioning parts.

Send us your design drawings and technical requirements today, and we will customize and produce qualified precision mechanical parts that fully match your equipment assembly standards.
