6061 Aluminum Hydraulic Manifold Block | Pneumatic Multi-channel Oil Circuit Connection Plate

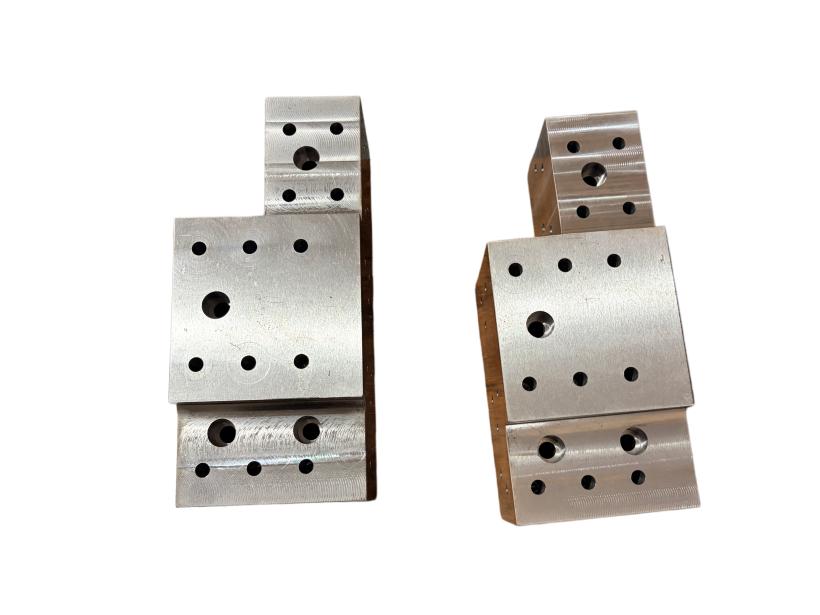

This manifold block is CNC machined from solid 6061 aluminum billet. Multiple through oil passages and threaded mounting holes are arranged on multiple surfaces to form independent interconnected oil channels. It is used to mount solenoid valves, cylinders and pipe joints, integrating scattered pipelines into one compact block. Widely used in automation pneumatic circuits and small hydraulic control modules. The solid aluminum structure ensures zero fluid leakage with light weight.

Core Specs

Application Industry: Custom automation pneumatic control system, hydraulic valve island assembly, fixture cylinder integrated air circuit, testing equipment hydraulic unit

Machining Process: 6061 aluminum blanking → 4-sided CNC profiling → deep hole drilling for oil passages → tapping → hole deburring → silver anodizing sealing

Tolerance Standard: Hole position ≤0.03mm, hole coaxiality ≤0.02mm, flatness ≤0.04mm/m. Burr-free holes guarantee tight sealing.

Material: 6061-T6 aluminum alloy, lightweight, rust-proof with stable air tightness

Production Equipment: Vertical machining center, deep hole drilling machine, tapping center, anodizing line

Optional Post-processing: Natural anodizing, hard anodizing, edge deburring, hole chamfering

Lead Time: Sample 3~4 working days, bulk order 6~10 working days

Advantages

✅ One-piece solid aluminum without splicing gaps, prevents oil and air leakage under medium pressure

✅ Multi-layer hole layout integrates multiple independent oil channels, greatly simplifying external piping

✅ Lightweight 6061 aluminum reduces total weight of valve assembly and resists oxidation

✅ Fully deburred hole openings ensure perfect sealing with rubber gaskets

✅ Multi-face mounting holes fit valves, cylinders and quick connectors for compact installation

Solid aluminum manifold block with integrated multi-path channels; leak-proof compact design for pneumatic & hydraulic modules.

#AluminumManifoldBlock #HydraulicValveBlock #PneumaticCircuitPlate #6061AluminumCNCPart #ValveIslandBase

Cooperation Invitation

We customize all kinds of hydraulic manifolds, air circuit blocks and integrated bases, including deep cross-hole drilling and thread machining, plus anodizing treatment. Automation and pneumatic component manufacturers are welcome to send drawings for free quotation and sample trial.
