6061-T6 Aluminum Special Angled Transition Bracket | Mount Angle for Cylinder & Sensor

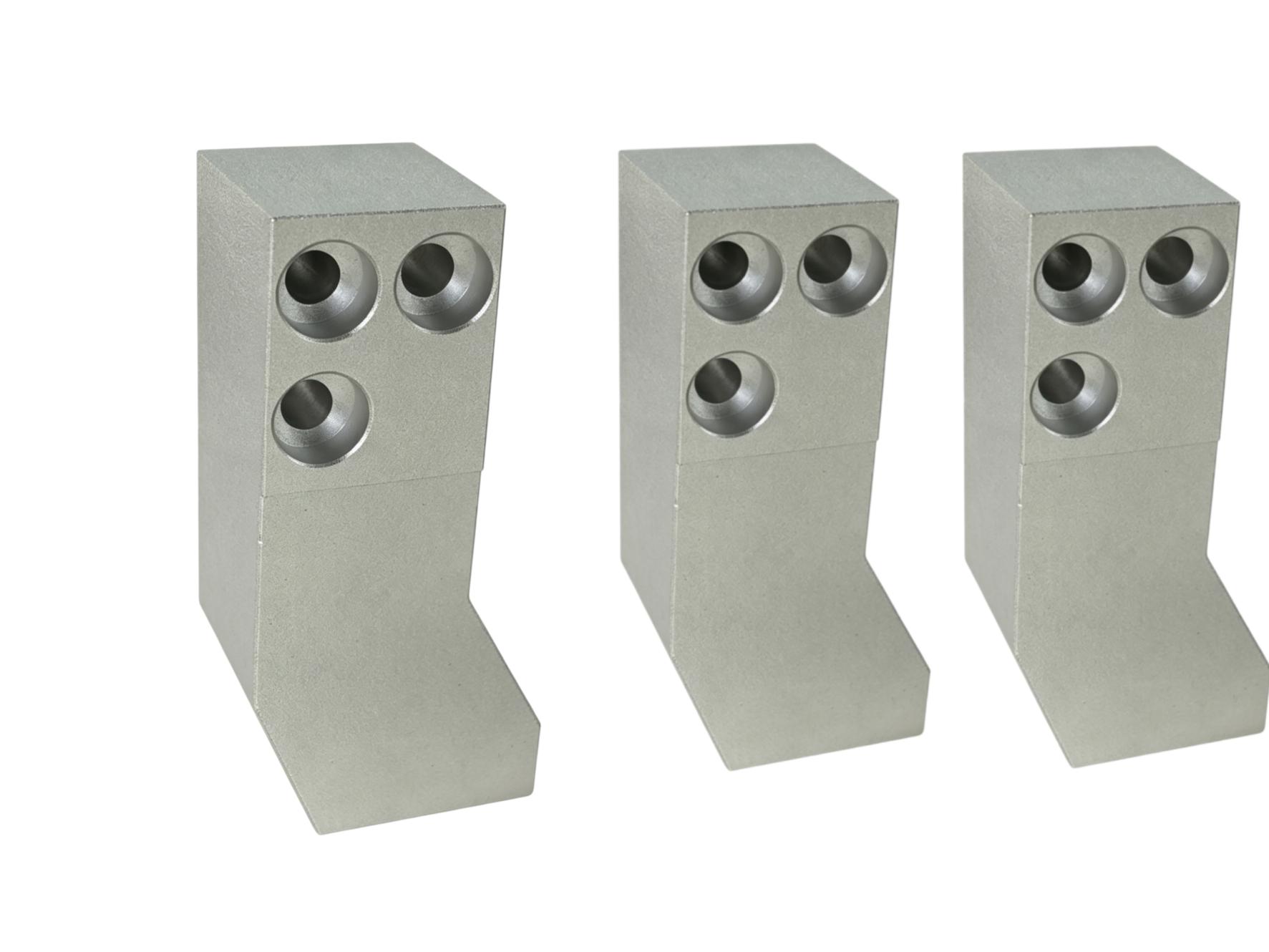

This connecting fixture is integrally CNC milled from solid 6061-T6 aluminum block. Three counter-sunk through holes are processed on the top, with an angled relief cut at the bottom. It serves as transition fixing part inside automation equipment, widely matched with pneumatic cylinders, photoelectric sensors, small robot modules and inspection jigs. The angled profile avoids interference with surrounding extrusions and cables. Matte anodized aluminum is lightweight & non-magnetic, eliminating signal disturbance to sensing components.

Core Specs

Application Industry: Custom automation production line, pneumatic cylinder assembly, photoelectric sensor mounting, robot auxiliary fixing, inspection positioning jig

Machining Process: 6061-T6 aluminum blanking → CNC angled contour milling → counter-sunk hole finishing → edge deburr & radius chamfer → matte silver natural anodizing

Tolerance Standard: Hole position tolerance ≤0.02mm, overall outline ±0.02mm, bevel angle ±0.05°, mounting surface Ra1.6

Material Property: 6061-T6 aluminum alloy, lightweight, corrosion-resistant, non-magnetic to guarantee sensor accuracy

Production Equipment: Vertical machining center, CNC tapping center, automatic anodizing production line

Optional Post Finishes: Matte natural anodizing, hard anodizing, mirror polishing

Lead Time: Sample order 3~4 working days, bulk order 6~10 working days

Advantages

✅ One-piece solid aluminum without splicing, high integral rigidity, no warping under long-term vibration

✅ Bottom angled relief cut prevents collision with cables, cylinders & profiles inside compact narrow equipment cavity

✅ Counter-sunk holes fully hide screw heads, smooth assembly surface without scratch risk to surrounding parts

✅ Lightweight 6061 aluminum cuts over 60% weight compared with steel brackets, reducing module overall load

✅ Matte anodized coating resists workshop coolant & moisture, anti-rust and non-magnetic for stable sensor performance

Angled aluminum transition bracket saves installation space with interference relief; hidden counter bore screws, universal mount angle for automation cylinders & sensors.

#6061AluminumTransitionBracket #SensorMountBracket #AutomationConnectAngle #CNCAluminumMachiningPart #CylinderFixBracket

Cooperation Invitation

We provide fully customized service for all irregular aluminum brackets, sensor holders and cylinder transition angles based on technical drawings, covering full processes of CNC milling, counter boring and anodizing. Equipped with in-house machining & anodizing lines to ensure consistent precision and on-time delivery. Automation manufacturers, overseas machinery buyers and mechanical design engineers can send CAD drawings for free technical proposal & quotation.
