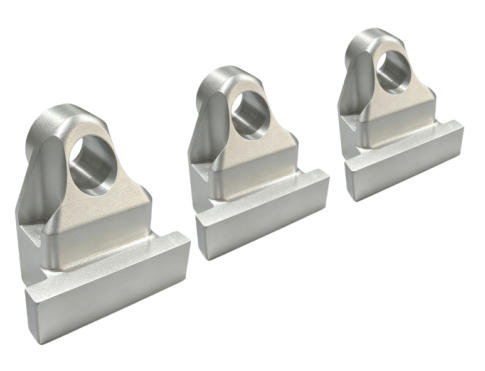

Tempered Steel Press Roller Bracket, Reinforced Bearing Support Housing

This component is a dedicated press roller bearing support base for automation equipment. Integrally 3/5-axis CNC machined from solid 45# steel. It adopts rectangular mounting base, triangular reinforced rib structure, precision bored central hole for bearing assembly, and side M5 threaded holes. Continuous fillet radii eliminate stress concentration. Widely used for supporting press rollers and bearing assemblies in laminating machines, conveyor lines and automatic pressing modules. With tempering treatment and electroless nickel plating, it delivers high strength, wear resistance and anti-corrosion performance for cyclic pressure operation.

Core Specs

Application: Laminator press roller assembly, conveyor roller support, automatic pressing mechanism, bearing mounting housing, custom machine roller bracket

Machining Process: 45# steel blanking → tempering heat treatment (HB220~250) → 3/5-axis CNC solid milling → precision boring for bearing hole & tapping → full radius blending & deburr → full electroless nickel plating

Tolerance Standard: Bearing bore tolerance ±0.015mm, mounting base flatness ≤0.02mm, hole position tolerance ≤0.02mm, mating surface Ra1.6

Material Property: Tempered 45# carbon steel, hardness HB220~250. Reinforced rib structure improves load capacity, excellent compression & wear resistance

Optional Finishes: Electroless nickel plating, black oxide, phosphating

Lead Time: Sample 3~4 working days, bulk order 6~10 working days

Advantages

✅ Integrated triangular reinforced rib design, uniform force dispersion, resistant to deformation and cracking under continuous compression

✅ Full internal & external radiused transitions to avoid stress cracking, outstanding fatigue resistance

✅ Precision bored center hole for tight bearing fit, high coaxiality ensures smooth roller rotation without runout

✅ Tempering heat treatment improves toughness and abrasion resistance, much longer service life than untreated carbon steel

✅ Dense electroless nickel plating resists coolant corrosion and abrasion, ideal for oily workshop environment

Tempered 45# steel reinforced press roller housing with stress-relief radii; precision bearing bore, dedicated support base for automation pressing rollers.

#PressRollerBracket #BearingHousing #SteelSupportBase #5AxisCNCMachining #AutomationPressComponent

Cooperation Invitation

We customize all kinds of irregular bearing housings and roller supports based on technical drawings. Capable for complex 3D parts with reinforcing ribs, offering one-stop CNC milling, heat treatment and electroless nickel plating service. Equipped with 3-axis & 5-axis machining centers. Automation manufacturers & overseas buyers can send CAD drawings for free technical evaluation and quotation.
